C-Arm Compatible
Operation Table
Home » Operation
Table
Operation Table
We bring forth a wide assortment of operation tables that
assists in completion of a very important medical and surgical task. The
tables are ergonomically designed keeping in mind the demanding surgical
requirements and the are able to bring out the versatility in the operation
theater. These tables are light in weight and provide ease in operation. Our
highly durable range includes Electromatic Operation Table with Longitudinal
Top, Orthopedic Table, Electromatic Operation Table, C-ARM Gearmatic

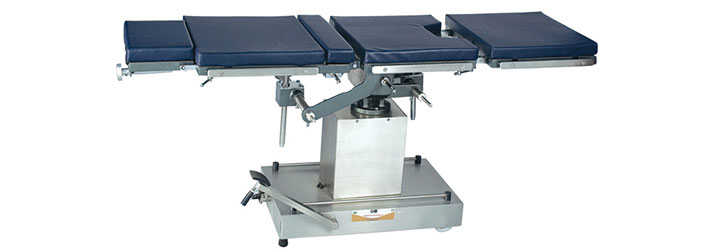

Hydraulic Operation Table, Super Deluxe Hydraulic Operation Table and C-ARM
Hydraulic Operation Table.
C-ARM Gearmatic Hydraulic Operation Table
Model No. - MI 111
This is hydraulic surgical table designed especially for Orthopedic, Neurology, Urology and ERCP Procedure. The Meditech MI 111 Universal Surgical Table features can be opting by its mechanism i.e. Lateral tilt, Trendelenburg/ Reverse Trendelenburg, Chair Position, Flex – reflex and Adjustable height functions. The Meditech MI 111 Universal Surgical Table is constructed of stainless steel and other high quality materials. The table is equipped with a large translucent top, for C-arm use.
Features :
- Hydraulic and Mechanical Operated.
- The base is eccentric for trouble-free C-ARM movements.
- Leg & Head section are interchangeable.
Technical Specification :
| Table Type | Fully Electric |
| Height Adjustable Range (in mm) | 762 mm to 1012 mm |
| Trendelenburg (in Degrees) | 30 Degree |
| Max Patient Load (in Kgs) | 175 kgs |
| Table Length (in mm) | 1905 mm |
| Table Width (in mm) | 533 mm |
| Kidney Elevator | 150 mm |
| Back Rest | UP : 80 degree / Down : 25 degree |
| Leg Rest | UP : 15 degree / Down : 90 degree |
| Head Rest Up Down | UP : 20 degree / Down : 60 degree |
| Trendelenburg Reverse | 25 degree |
| Lateral Tilt | 20 Degree / 20 Degree |
C-Arm Compatible OT Table
This C-Arm Compatible OT Table is a mobile, electrical operated surgical table designed with Hanging Orthopedic Attachment to support Orthopedic Procedure. The Meditech MI 102 Universal Surgical Table features powered Lateral Tilt, Trendelenburg/ Reverse Trendelenburg, Chair Position and Adjustable Height functions.
Features :
- Specialized for cardiology, orthopaedic, neurology, ERCP, laparoscopy and urology.
- Hanging Orthopedic Attachment is attached by the head side for orthopedic surgeries.
- The table column base is eccentric for easy C Arm movements.
- During the operation, the extension allows selective positioning of the leg according to the surgeonʹs directions, at the same time, a minimum strain on the patient.
- Interchangeable head and leg sections offer optimum patient positioning.
- Corded handset for simple, intuitive control (height, trendelenburg, lateral tilt, flex-reflex, chair).
- The table has been made from acid proof, antirusted stainless steel 304G (the face of the table is easy to clean and immune to disinfection agents).
Optional :
- Override Panel/Standby Controller: Additional control panel on the table column cover for continue operation in case of remote failure.
- Zero Position to make table neutral by simply pressing '0' positioning button.
- Memory Function - The microprocessor based control system is fully programmable and can store upto two user-programmable preset positions in its memory that can be recalled anytime by simply pressing M1 or M2 button.
- Remote has LED backlit with symbolic position figures to use even in darkness.
- Safety key to block motor system in critical operations.
- Individual Locking Function.
Technical Specification :
| Top dimension | L 1930 x W 533 mm |
| Height adjustment | 750 mm – 1000 mm |
| Trendelenburg / Reverse | 30° / 25° |
| Lateral tilt | 20° / 20° |
| Kidney elevator | 150 mm |
| Back Rest (up / down) | 80° / 25° |
| Leg Rest (up / down) | 15° / 90° |
| Head Rest (up / down) | 20° / 60° |
| Power supply | 24 VDC |
| Battery Backup | 3 hours (optional) |
| Patient Weight Capacity | 200 kgs (440 lbs) |
Model No. - MI 2003
This Side End Control OT Table is mobile, hydraulic designed to support virtually all general surgical procedures like: gynecology and urology. The Meditech MI 2003 Universal Surgical Table features can be opting by its mechanism i.e. Lateral tilt, Trendelenburg/ Reverse Trendelenburg, Chair Position and Adjustable height functions.
Features :
- Specialized for minor & general procedures.
- Functions can be opting by its mechanism i.e. lateral tilt, trendelenburg/reverse trendelenburg, flex-reflex & chair position.
- Height adjustment by stepping foot pedal downward.
- Detachable head and leg sections.
- Furnished with hard, robust stainless steel shell which provides the sense of dirt free & sanitized operations.
Technical Specification :
| Top dimension | L 1830 x W 497 mm |
| Height adjustment | 750 mm – 1000 mm |
| Trendelenburg / Reverse | 30° / 25° |
| Lateral tilt | 20° / 20° |
| Kidney elevator | 150 mm |
| Back Rest (up / down) | 80° / 25° |
| Leg Rest (up / down) | 15° / 90° |
| Head Rest (up / down) | 20° / 60° |
| Patient Weight Capacity | 120 kgs (264 lbs) |
Fracture OT Table
Model No. - MI 102
This Fracture OT Table is a mobile, electrical operated surgical table designed with Hanging Orthopedic Attachment to support Orthopedic Procedure. The Meditech MI 102 Universal Surgical Table features powered Lateral Tilt, Trendelenburg/ Reverse Trendelenburg, Chair Position and Adjustable Height functions.
Features :
- Specialized for cardiology, orthopaedic, neurology, ERCP, laparoscopy and urology.
- Hanging Orthopedic Attachment is attached by the head side for orthopedic surgeries.
- The table column base is eccentric for easy C Arm movements.
- During the operation, the extension allows selective positioning of the leg according to the surgeonʹs directions, at the same time, a minimum strain on the patient.
- Interchangeable head and leg sections offer optimum patient positioning.
- Corded handset for simple, intuitive control (height, trendelenburg, lateral tilt, flex-reflex, chair).
- The table has been made from acid proof, antirusted stainless steel 304G (the face of the table is easy to clean and immune to disinfection agents).
Technical Specification :
| Top dimension | L 1930 x W 533 mm |
| Height adjustment | 750 mm – 1000 mm |
| Trendelenburg / Reverse | 30° / 25° |
| Lateral tilt | 20° / 20° |
| Kidney elevator | 150 mm |
| Back Rest (up / down) | 80° / 25° |
| Leg Rest (up / down) | 15° / 90° |
| Head Rest (up / down) | 20° / 60° |
| Power supply | 24 VDC |
| Battery Backup | 3 hours (optional) |
| Patient Weight Capacity | 200 kgs (440 lbs) |
Fracture Table
This Fracture Table especially designed with centric column to bear maximum patient weight capacity of 300 kgs. Its a mobile, electrical operated surgical table for multipurpose i.e. cardiology, bariatric, orthopedic, neurology etc. with the addition of table accessories.
The table is equipped with a large translucent sliding table top providing Laparoscopy & C-ARM functions without patient reversing. The Surgical Table is powered by either internal battery or facility electric power system
Features :
- Specialized for bariatric, cardiology, orthopaedic, neurology and laparoscopy.
- Offering full imaging facility from heart to toes by means of C-Arm access.
- With our tabletop longitudinal slide feature, there is no need to reverse patient to achieve full-body fluoroscopic procedures.
- Smooth functions of the table (height, trendelenburg, lateral tilt, flex-reflex, chair, longitudinal top) can be achieved by using the corded handset.
- Table is made of high quality medical stainless steel 304G. Non- reflecting surface, antibacterial, anti-rusted & is easy to clean.
- Interchangeable head/ leg sections allow unobstructed.
- Inbuilt battery enables to run table in emergency.
Optional :
- Override Panel/Standby Controller: Additional control panel on the table column cover for continue operation in case of remote failure.
- Zero Position to make table neutral by simply pressing '0' positioning button.
- Memory Function - The microprocessor based control system is fully programmable and can store upto two user-programmable preset positions in its memory that can be recalled anytime by simply pressing M1 or M2 button.
- Remote has LED backlit with symbolic position figures to use even in darkness.
- Safety key to block motor system in critical operations.
- Individual Locking Function.
Technical Specification :
| Top dimension | L 1960 x W 533 mm |
| Height adjustment | 750 mm – 1000 mm |
| Table top sliding | 250 mm |
| Trendelenburg / Reverse | 30° / 25° |
| Lateral tilt | 20° / 20° |
| Kidney elevator | 150 mm |
| Back Rest (up / down) | 80° / 25° |
| Leg Rest (up / down) | 15° / 90° |
| Head Rest (up / down) | 20° / 60° |
| Power supply | 24VDC |
| Battery Backup | 3 hrs. |
| Patient Weight Capacity | 300 Kgs (666 lbs) |
Laparo Surgery OT Table
This Laparo Surgery OT Table especially designed with centric column to bear maximum patient weight capacity of 300 kgs. Its a mobile, electrical operated surgical table for multipurpose i.e. cardiology, bariatric, orthopedic, neurology etc. with the addition of table accessories.
The table is equipped with a large translucent sliding table top providing Laparoscopy & C-ARM functions without patient reversing. The Surgical Table is powered by either internal battery or facility electric power system
Technical Specification :
| Top dimension | L 1960 x W 533 mm |
| Height adjustment | 750 mm – 1000 mm |
| Table top sliding | 250 mm |
| Trendelenburg / Reverse | 30° / 25° |
| Lateral tilt | 20° / 20° |
| Kidney elevator | 150 mm |
| Back Rest (up / down) | 80° / 25° |
| Leg Rest (up / down) | 15° / 90° |
| Head Rest (up / down) | 20° / 60° |
| Power supply | 24VDC |
| Battery Backup | 3 hrs. |
| Patient Weight Capacity | 300 Kgs (666 lbs) |
Side End Control OT Table
This Side End Control OT Table is mobile, hydraulic designed to support virtually all general surgical procedures like: gynecology and urology. The Meditech MI 2003 Universal Surgical Table features can be opting by its mechanism i.e. Lateral tilt, Trendelenburg/ Reverse Trendelenburg, Chair Position and Adjustable height functions.
Technical Specification :
| Top dimension | L 1830 x W 497 mm |
| Height adjustment | 750 mm – 1000 mm |
| Trendelenburg / Reverse | 30° / 25° |
| Lateral tilt | 20° / 20° |
| Kidney elevator | 150 mm |
| Back Rest (up / down) | 80° / 25° |
| Leg Rest (up / down) | 15° / 90° |
| Head Rest (up / down) | 20° / 60° |
| Patient Weight Capacity | 120 kgs (264 lbs) |
Spine Frame
C-ARM Compatible Spinal Bridge Wilson, fully made of stainless steel & aluminum, PUF pads, individually adjustable to the width of the patient; flexion range manually adjustable Radiolucent.
Note: This frame is standard for all operation tables and now there is no need of any bolster and pads.
Salient Features :
- Adjustable width for adult & child.
- Allows surgeon better control over Surgery.
- Surgeons are allowed better control over the degree of thoracic and lumber kyphosis and lordosis.
- Anti-Corrosive Stainless Steel material used for construction of frame.
